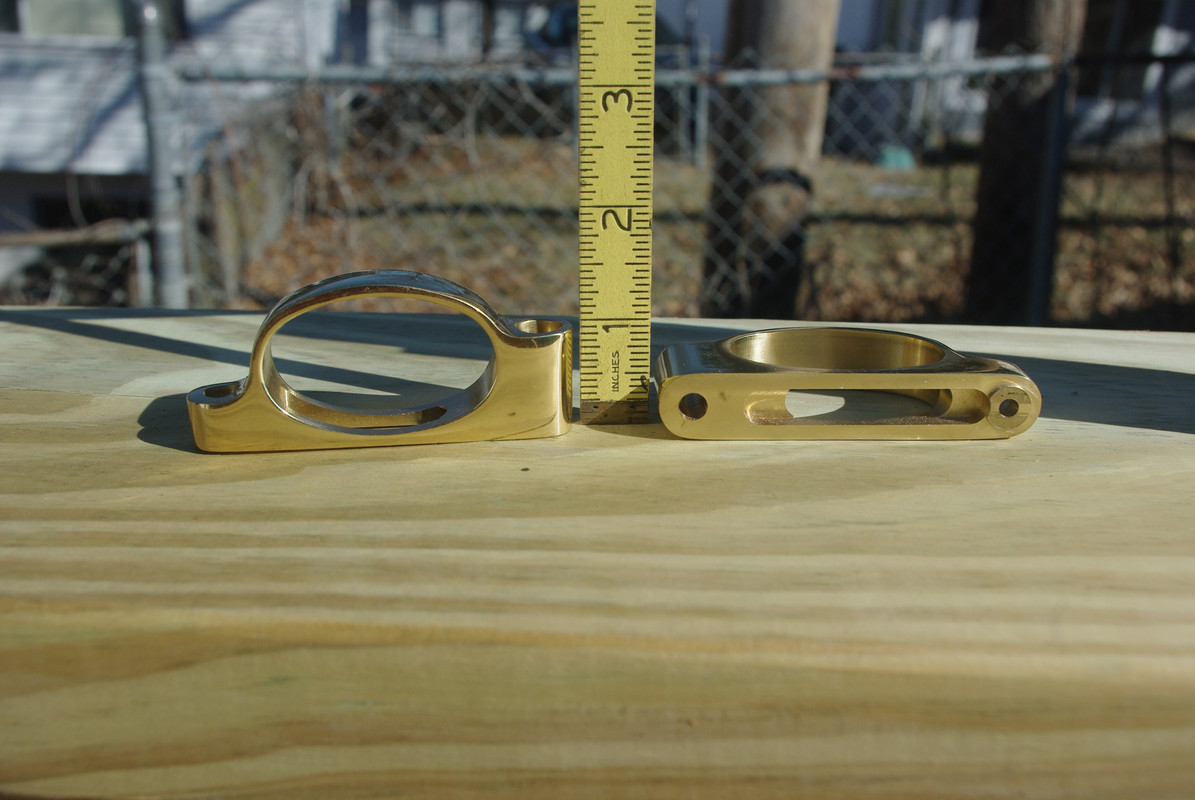

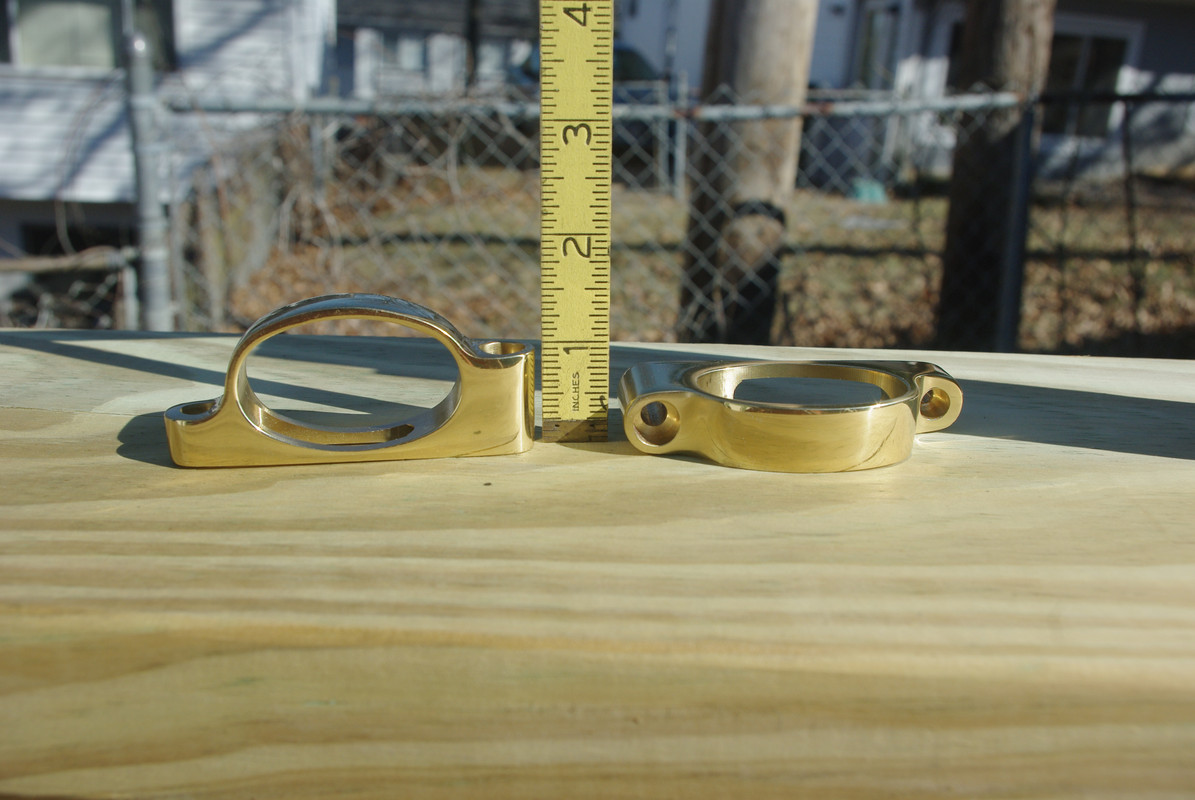

m. looking at the photos these might be for a TX
here picture at Rowan Engineering
http://www.rowanengineering.com/products6.htm#tx200guard
look down the page
Don't know if it will help but, I measured the length and width of my HW guard. The length is roughly 3 & 1/4" and it's about 9/16" wide.
Many of the custom makers make their guards so that they sit nearly flush with the surface of the stock. Given that the TX has a deeper belly on the forearm, my guess would be that those are for the TX.
Many of the custom makers make their guards so that they sit nearly flush with the surface of the stock. Given that the TX has a deeper belly on the forearm, my guess would be that those are for the TX.
True, but I have a custom Macarri R9 with a trigger guard that looks like these as well. And I think the TX guard is a little wider than these ones (but at the office now and going off of memory). Best bet would be to measure the width, overall length, and the distance between the front and rear screw holes. That would give you something definitive to go off of.
Nice looking guards, regardless!
Most likely very similar, never lined them up on both. I will say, ARH sells an aftermarket HW guard that has the long front like a TX.
One thing that catches my eye, the TX rear screw hole on mine is counter bored deeper for a socket head cap screw. The HW, as we all know, has the small slotted oval head machine screw that barely sits flush.
?
Jason Garvin
Don't know if it will help, but here's another view of the factory guard.
Ok, here's the deal: they are really close. They both have the same hole spacing almost the same overall dimensions. An HW guard will fit on a TX, but there will be a little extra room around the wood. I can't fit my TX guard on one of my R1's though - it's a little too long and a little too wide. Also worth noting, my aftermarket HW guard is also counter-bored like the TX guard.
Zack49, looking at your measurements, the length sounds like an HW, but the width, if correct, means it has to be a TX. You might need to measure with a caliper to be sure.
I've got a factory HW, a factory TX, and an ARH black replacement for HW guns. These measurements were taken with a caliper and rounded to the nearest 1/32", with actual measurement in parenthesis. Going left to right:
HW factory: 3 7/16 long, 19/32 wide (0.589")
ARH: 3 5/16 long, 19/32 wide (0.590")
TX: 3 5/8 long, just a hair under 5/8 wide (0.623")
Hope this helps!
